Three things get called an LED menu board
If you search for an LED menu board you will be quoted three completely different products at wildly different prices, all under the same name. Sorting that out is most of the buying decision.
| What it is | How it works | Typical cost per position | Best for |
|---|---|---|---|
| Backlit lightbox | Printed translucent panel lit from behind by LEDs | $250-600 | Fixed menus that never change |
| LED-backlit LCD | Standard flat panel, LCD pixels lit by an LED backlight | $600-2,000 | Almost every restaurant counter |
| Direct-view LED | Individual LEDs are the pixels, tiled into a wall | $8,000-30,000+ | Large-format, very bright, very big |
The critical fact: virtually every flat-screen TV and commercial display sold today is an LED-backlit LCD. When a signage vendor says "LED display" and quotes you $900, that is what they mean. When another vendor says "LED wall" and quotes $18,000, that is direct-view LED. Same two letters, different universe.
Why LED-backlit LCD wins for most restaurants
For a counter, a drinks wall, or a three-panel QSR row, a commercial LED-backlit LCD is the right answer nearly every time.
It gives you sharp small text at normal viewing distance, which matters because a menu is dense typography rather than a billboard. It runs 400-700 nits indoors, which is plenty away from direct sun. And it is cheap enough that adding a fourth panel is a decision you can make without a capital request.
Buy commercial-grade, not consumer. Commercial panels are rated for 16-24 hours a day, hold their brightness, and are warranted for portrait mounting. Our hardware guide covers the full commercial-versus-consumer comparison.
When direct-view LED is genuinely worth it
Direct-view LED earns its price in three situations, and only three.
Very large formats. Above roughly 100 inches diagonal, LED tiles become cheaper and more practical than a bezel-free LCD video wall, and they scale to any aspect ratio you like.
Extreme brightness. Outdoor and window-facing positions where you need 4,000+ nits, which LCD struggles to reach affordably. See the outdoor menu board guide for the brightness maths.
Seamlessness. No bezels between tiles, so a single continuous image across a wall. If your brand identity depends on one huge unbroken canvas, LED is the only way there.

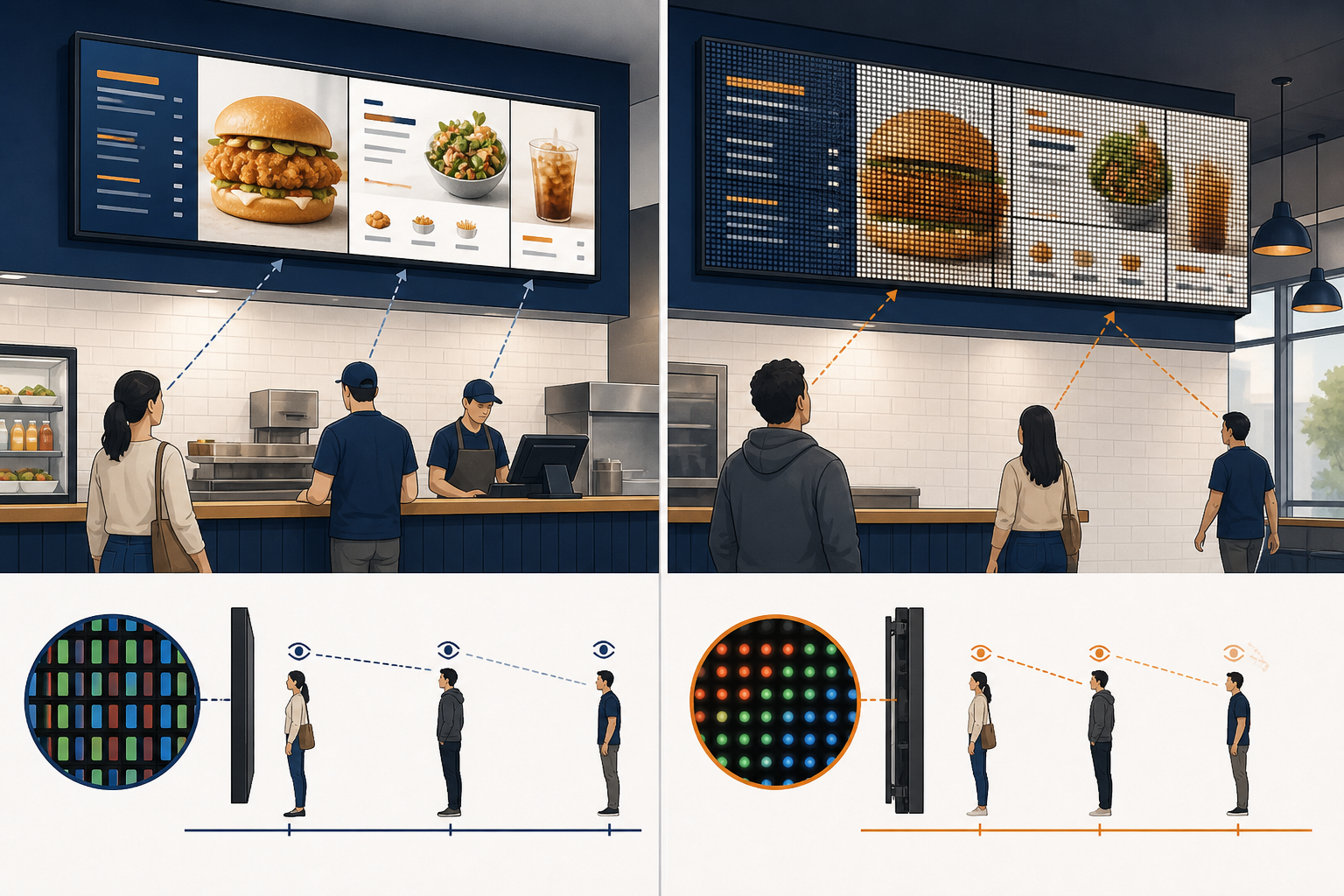

What kills it for menus is pixel pitch. A 2.5mm pitch LED wall has roughly one pixel every 2.5mm, which means fine menu text needs viewers 3+ metres back to resolve cleanly. Great for a drive-thru approach. Bad for a counter where someone is standing four feet away reading a price.
Pixel pitch, in one rule
Minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres. A 4mm pitch wall needs about 4 metres. A 1.5mm pitch wall works at 1.5 metres but costs roughly double.
That rule is why menu boards and LED walls are usually a mismatch: menus are read close up, and close-up LED is the expensive end of an already expensive product.
What lightboxes still do well
Do not dismiss the backlit print lightbox entirely. If a menu genuinely does not change (a fixed price list, an all-day breakfast board, a hall-of-fame wall), a lightbox is bright, silent, uses almost no power, and cannot crash.
The moment prices move, it becomes the most expensive option you own, because every change is a reprint plus labour. Our digital vs printed comparison runs the actual break-even.
The market is moving to the control layer
Industry analysts put the digital menu boards market at $6.1 billion in 2024, growing to $9.6 billion by 2030, with restaurants making up 54.8% of it. Almost all of that growth is in software and management, not glass.
That is the practical takeaway. The screen technology decision is a one-time spend that you will get roughly right if you follow the table above. The software decision is a monthly one that determines whether the board stays current, and it is where the value actually sits. Judge it on whether it connects to your POS and whether a manager can update it without a support ticket.
Frequently asked questions
Is an LED menu board better than an LCD menu board?
The question is usually based on a false distinction. Nearly all modern LCD panels are LED-backlit, so "LED" and "LCD" describe the same product. The real comparison is LED-backlit LCD versus direct-view LED, and for menu-sized text at counter distance, LCD wins on cost and sharpness.
How much does an LED menu board cost?
Roughly $600-2,000 per commercial LED-backlit LCD panel, $250-600 for a backlit print lightbox, and $8,000-30,000+ for direct-view LED. Add $80-150 for a media player and a few dollars per screen per month for software.
What pixel pitch do I need for a menu board?
If you are using direct-view LED at all, match pitch in millimetres to minimum viewing distance in metres. Counter boards need 1.5mm or finer, which is why most counters use LCD instead.
Do LED menu boards burn in?
Direct-view LED and LED-backlit LCD both resist burn-in far better than old plasma, but static high-contrast elements left on 18 hours a day can still cause image retention. Vary layouts by daypart and it is a non-issue, which scheduling handles automatically.
Can I mix LED and LCD screens on one menu wall?
You can, but do not. Colour temperature and brightness will never match perfectly, and a mismatched row reads as broken rather than intentional.
Pick the boring option
For the overwhelming majority of restaurants, the correct LED menu board is a commercial LED-backlit LCD, wall-mounted, fed by a small player, driven by software connected to the POS. It is unglamorous and it is right.
Spend the money you saved on the software layer that keeps it current. Start free on one screen and find out how often you actually change your menu. It will be more often than you think.
