What makes outdoor digital menu boards different
Outdoor digital menu boards are not indoor screens in a weatherproof box. They are a separate product category built around three specs that indoor panels simply do not have: extreme brightness, a sealed and rated enclosure, and active thermal management.
Skip any one of those and the board fails in a predictable way. Not bright enough and it goes unreadable at noon. Not sealed and moisture kills the panel in the first wet season. Not cooled and it thermally throttles or shuts off in July, which is exactly when your patio and drive-thru volume peaks.
The good news is that once those three specs are right, the rest of the build is the same as any indoor board. The screen is the hard part outdoors. The software is the same software.
Brightness: the number that decides everything
Brightness is measured in nits (candela per square metre). This is the single most important number on an outdoor spec sheet.
| Placement | Brightness needed | Notes |
|---|---|---|
| Indoor counter | 350-500 nits | Standard commercial panel |
| Covered patio, shaded window | 700-1,500 nits | High-bright, semi-outdoor |
| Drive-thru lane, direct sun | 2,500-3,500 nits | True outdoor, sunlight readable |
| West-facing at sunset | 3,500-5,000 nits | Worst-case glare orientation |
Spec for the worst hour of the day, not the average. A board that reads beautifully at 9am and disappears at 5pm is a board that fails during your dinner rush.
One more thing the spec sheet will not tell you: anti-reflective bonding matters nearly as much as raw nits. An optically bonded panel at 2,500 nits often outperforms an air-gap panel at 3,000, because bonding removes the internal reflection layer that turns a screen into a mirror.

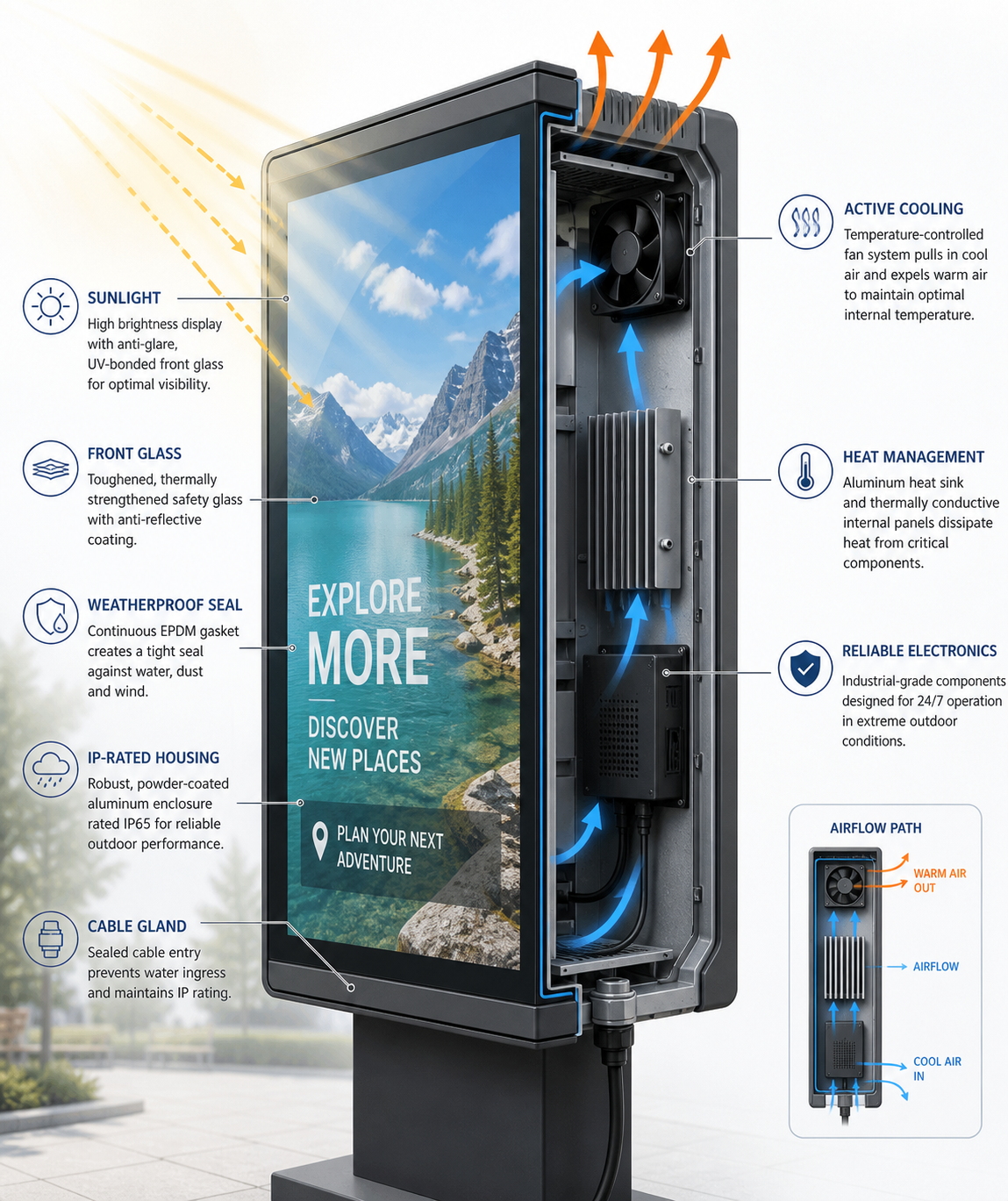

Weatherproofing and IP ratings
Enclosures are rated with an IP number: the first digit is dust, the second is water.
- IP54 is the floor for a covered outdoor position. Splash resistant, not rain resistant.
- IP65 is the realistic standard for an exposed drive-thru or patio board. Dust tight, resists water jets.
- IP66 and above is for coastal salt spray, pressure washing, and anywhere staff will hose down the surrounding area.
The detail operators miss: the enclosure is only as good as its cable gland. Most outdoor failures are not the panel, they are water tracking down an unsealed conduit into the back box. Seal the entry point or the IP rating on the box is decorative.
Cooling and the heat problem
A bright panel behind glass in direct sun is a solar oven. Passive cooling (vents and fins) works up to roughly 35C ambient. Above that you need active cooling: fans in the enclosure, or a closed-loop air conditioner in genuinely hot climates.
Check two numbers on the datasheet: the maximum operating ambient temperature, and whether the panel dims automatically when it gets hot. Some units protect themselves by dimming, which is a polite way of saying the board becomes unreadable exactly when the sun is worst.
Cold matters too. Below about -10C, panels need a heater to prevent the liquid crystal from responding sluggishly and ghosting.
Mounting, glare and sightlines
Orientation beats specification. A 2,000-nit board facing north will outperform a 3,000-nit board facing directly into the setting sun.
Where you have a choice, angle the board 10 to 15 degrees downward. That does two things: it sheds rain and it tilts the reflection of the sky out of the driver's or customer's eye line. For lane geometry, sizing and item counts, our digital menu board size guide has the viewing-distance maths, and the drive-thru guide covers preview and order board sequencing.
What it costs
| Tier | Hardware per screen | Fits |
|---|---|---|
| High-bright semi-outdoor | $1,200-2,500 | Covered patio, window-facing |
| True outdoor IP65, 2,500 nits | $3,500-6,500 | Drive-thru, exposed lane |
| Outdoor with active AC cooling | $6,500-12,000 | Hot climates, all-day sun |
Add $150-400 for the player and mount, plus install and electrical. Software runs a few dollars per screen per month, which is a rounding error against the panel.
That gap between indoor and outdoor pricing is why the smartest rollout order is usually indoor first. Prove the content workflow on a counter board where hardware is cheap, then spend the outdoor money once you know what your menu looks like on screen.
Then make it manageable
The hardware decision ends the day it is installed. The content decision repeats forever, so the thing that actually determines whether the board earns its cost is whether a manager can change it.
Connect it to your point of sale so prices come from one place. MenuPi syncs natively with Toast, Square, Clover, Lightspeed and 35+ more, and daypart scheduling means the outdoor board switches from breakfast to lunch without anyone walking outside in the rain.
The restaurant industry is projected to hit $1.55 trillion in sales in 2026 with only 1.3% real growth, according to the National Restaurant Association, which is a polite way of saying margin comes from operating better rather than selling more. A board you can change in thirty seconds is an operating improvement. A board that needs a designer is a liability with a warranty.
Frequently asked questions
How many nits do outdoor digital menu boards need?
2,500 nits minimum for direct sunlight, 3,500 or more for a west-facing position that catches late afternoon sun. Anything under 1,500 nits belongs in a covered or shaded location only.
Can I put a regular TV in an outdoor enclosure?
Technically yes, practically no. A consumer TV at 350-500 nits will be unreadable in daylight regardless of how good the box is, and most consumer panels are not rated for the ambient temperatures inside a sealed enclosure in summer.
What IP rating do I need for a drive-thru menu board?
IP65 for an exposed lane. IP54 is acceptable only under a solid canopy where the screen never takes direct rain. Seal the cable entry regardless of rating.
Do outdoor menu boards use more electricity?
Yes, meaningfully. A 2,500-nit outdoor panel draws roughly three to four times an indoor panel of the same size, plus cooling. Budget for it, but it is still small against the hardware cost.
How long do outdoor digital menu boards last?
Five to seven years for a commercial outdoor unit that is correctly cooled. The failure point is almost never the panel itself: it is moisture ingress or a cooling fan that nobody ever cleaned.
Buy for the worst hour, not the average
Every outdoor menu board that disappoints was specced against a mild afternoon. Pick the brightest, hottest, wettest hour your board will face, buy for that, and the other 4,000 hours a year take care of themselves.
